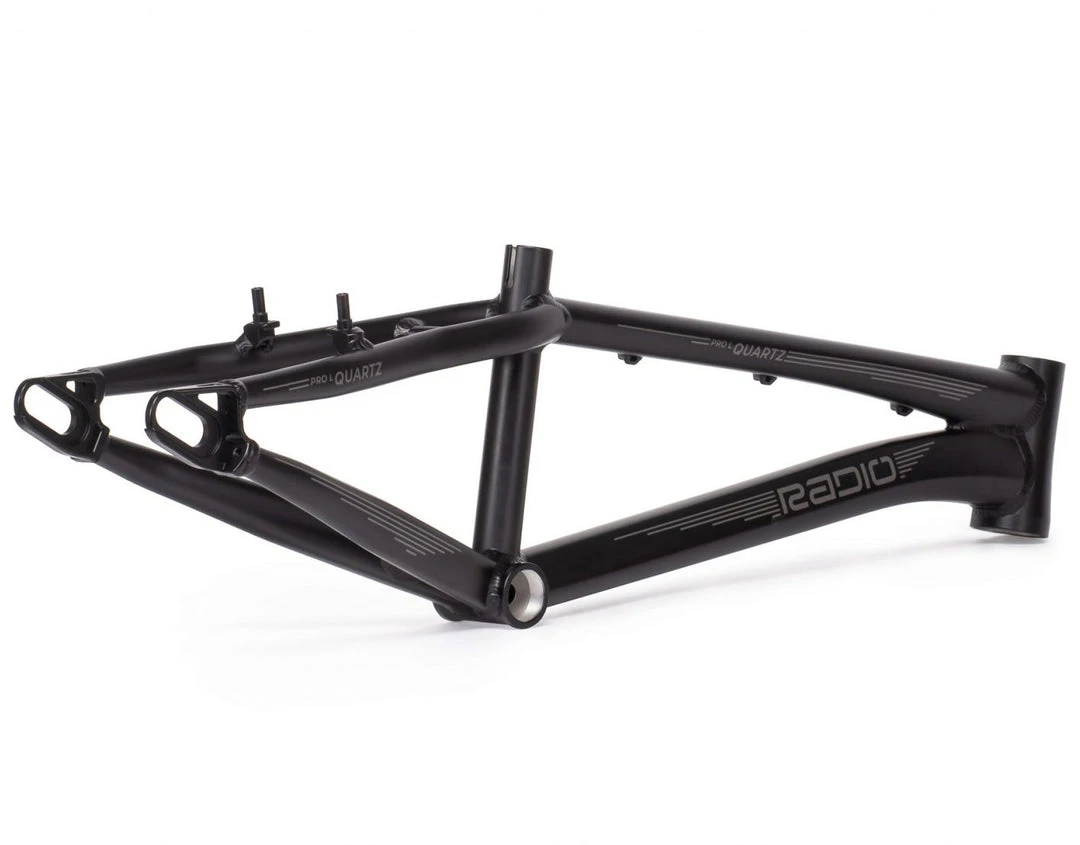

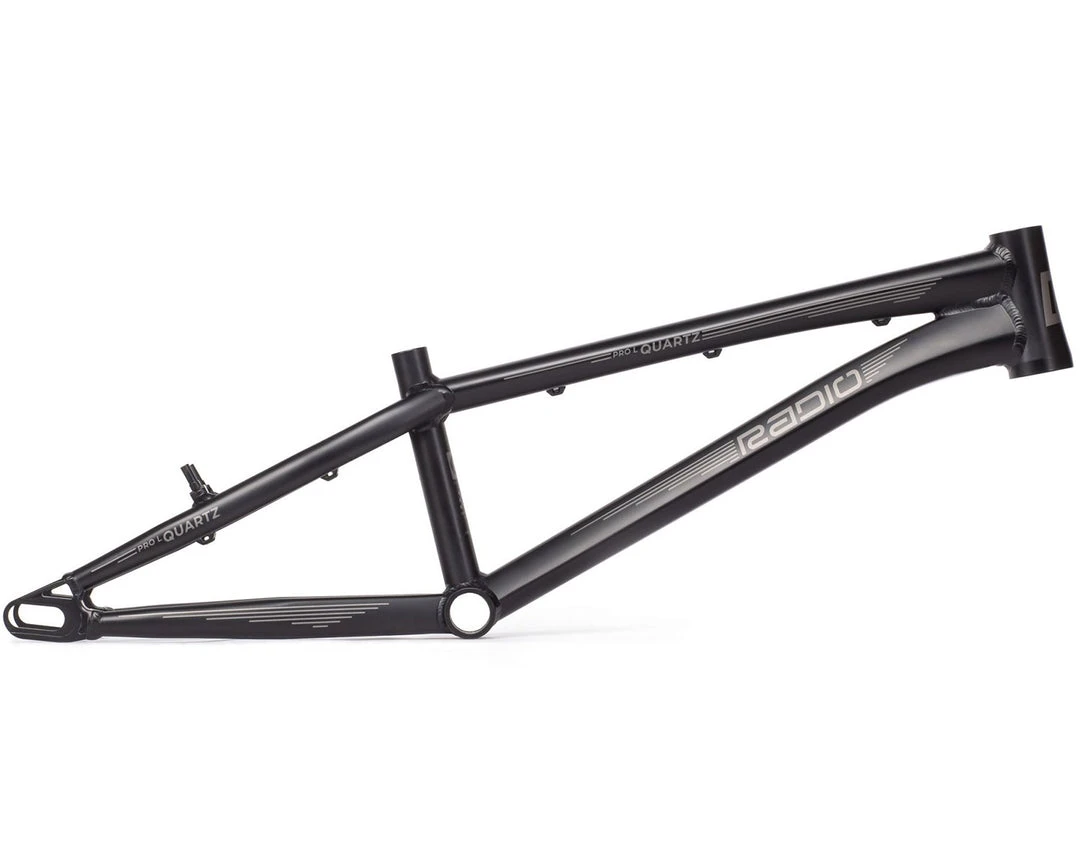

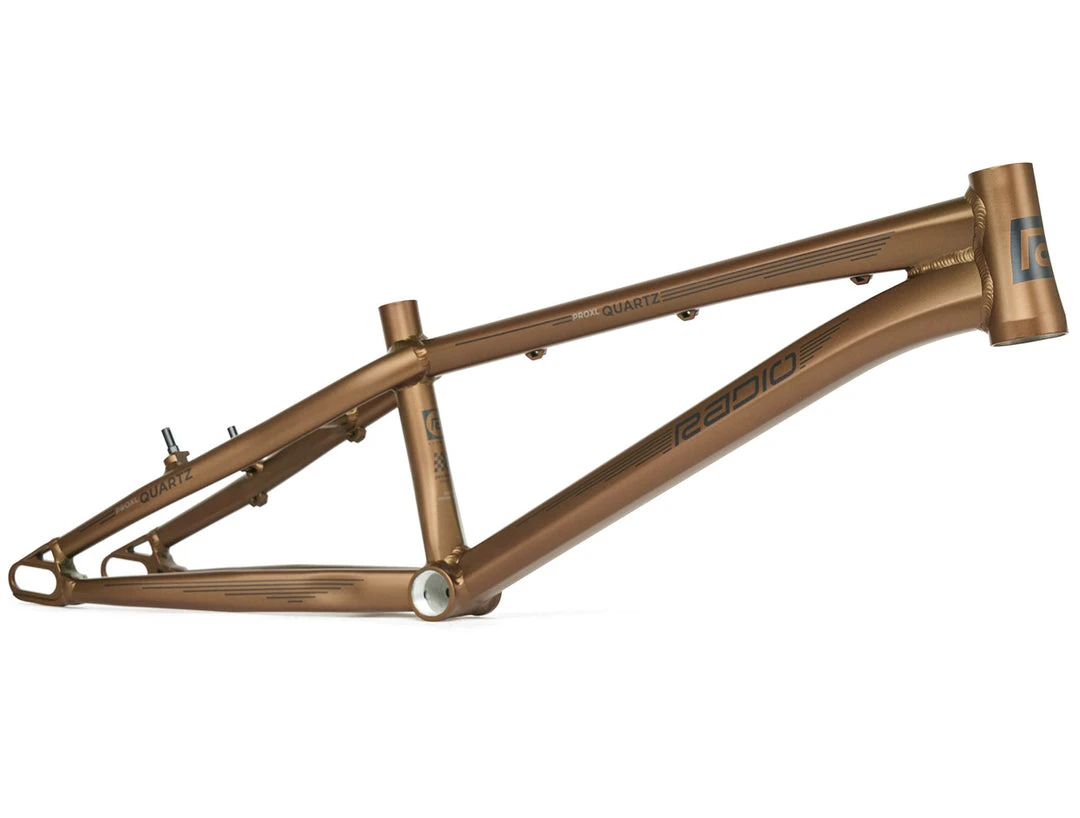

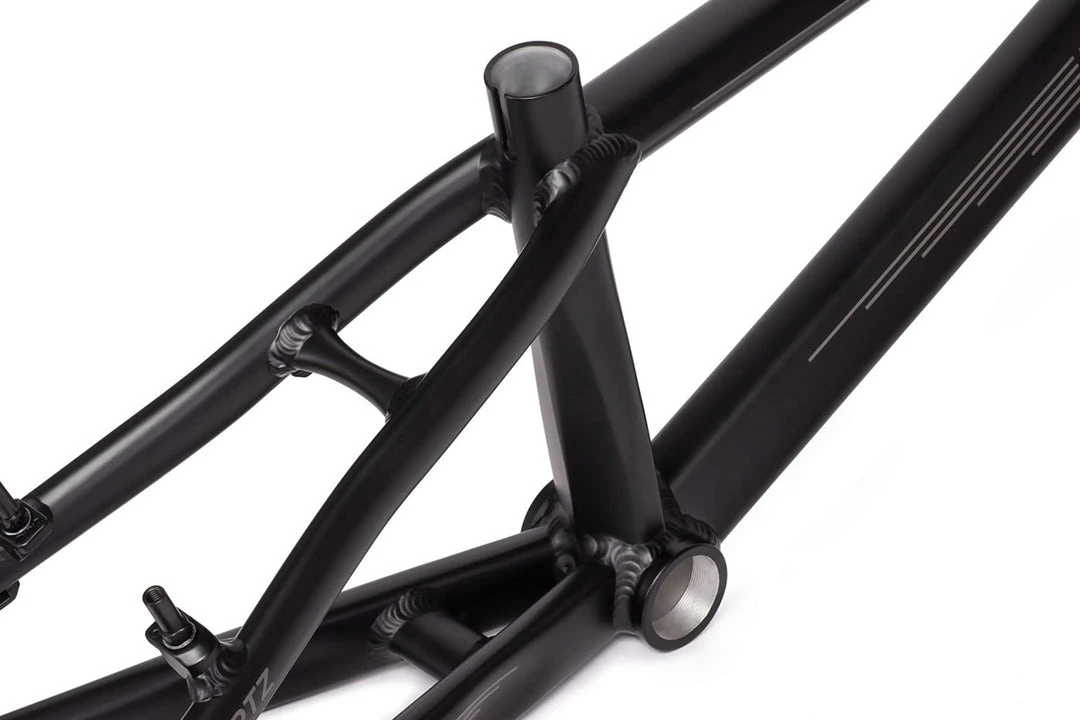

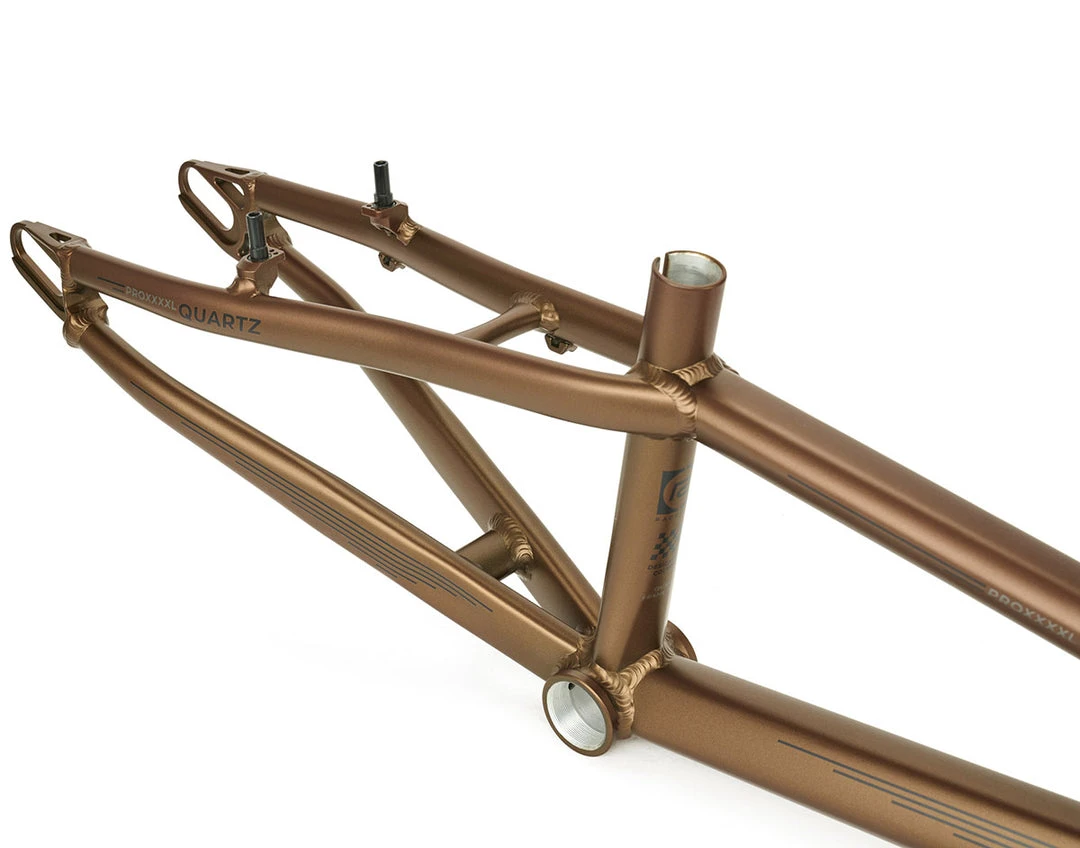

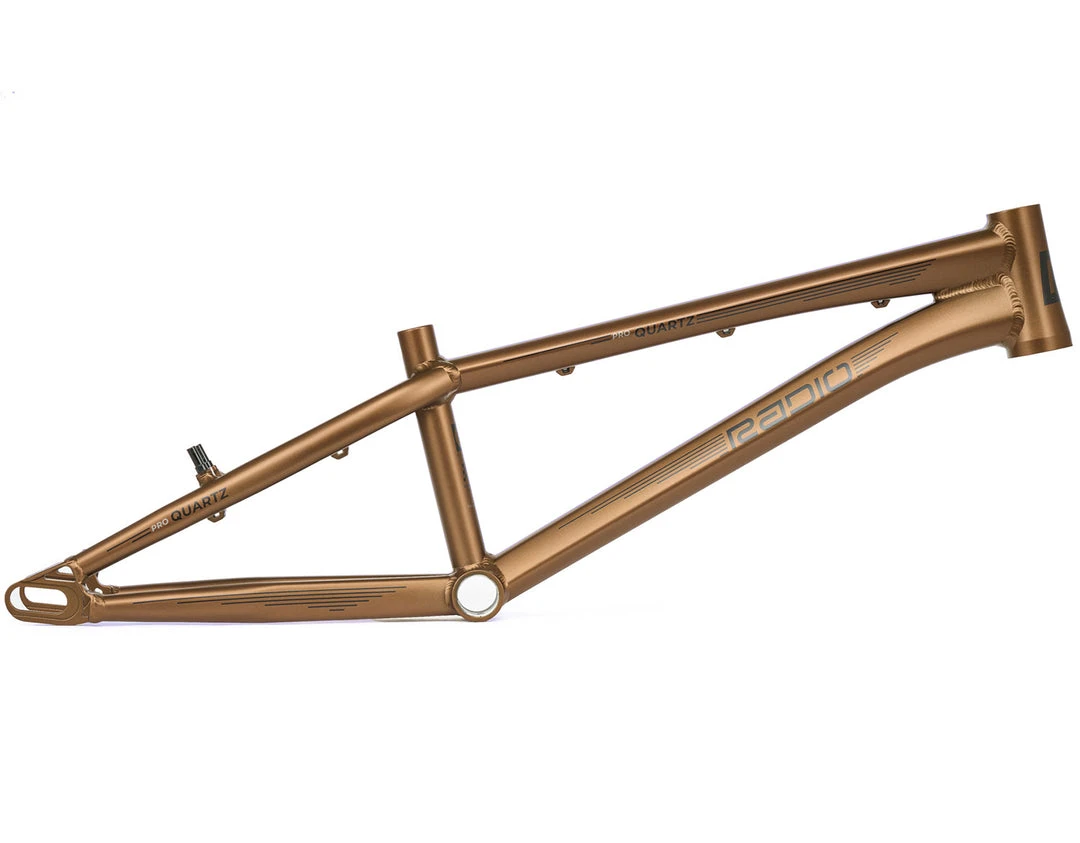

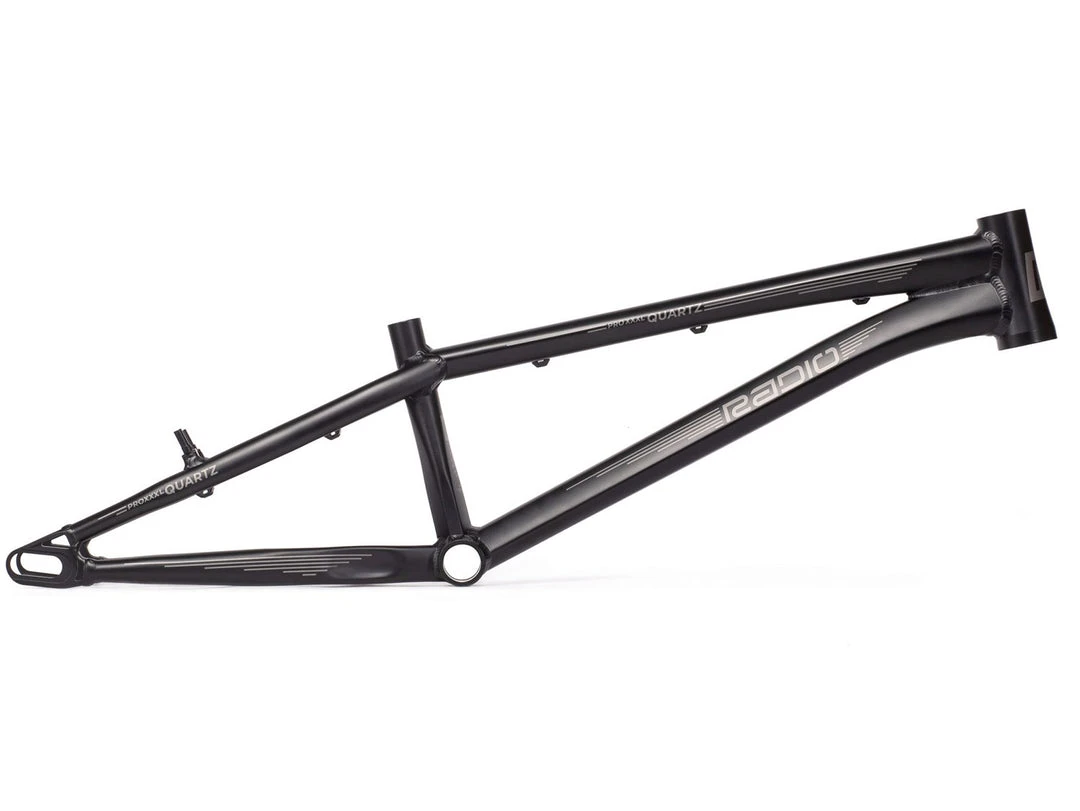

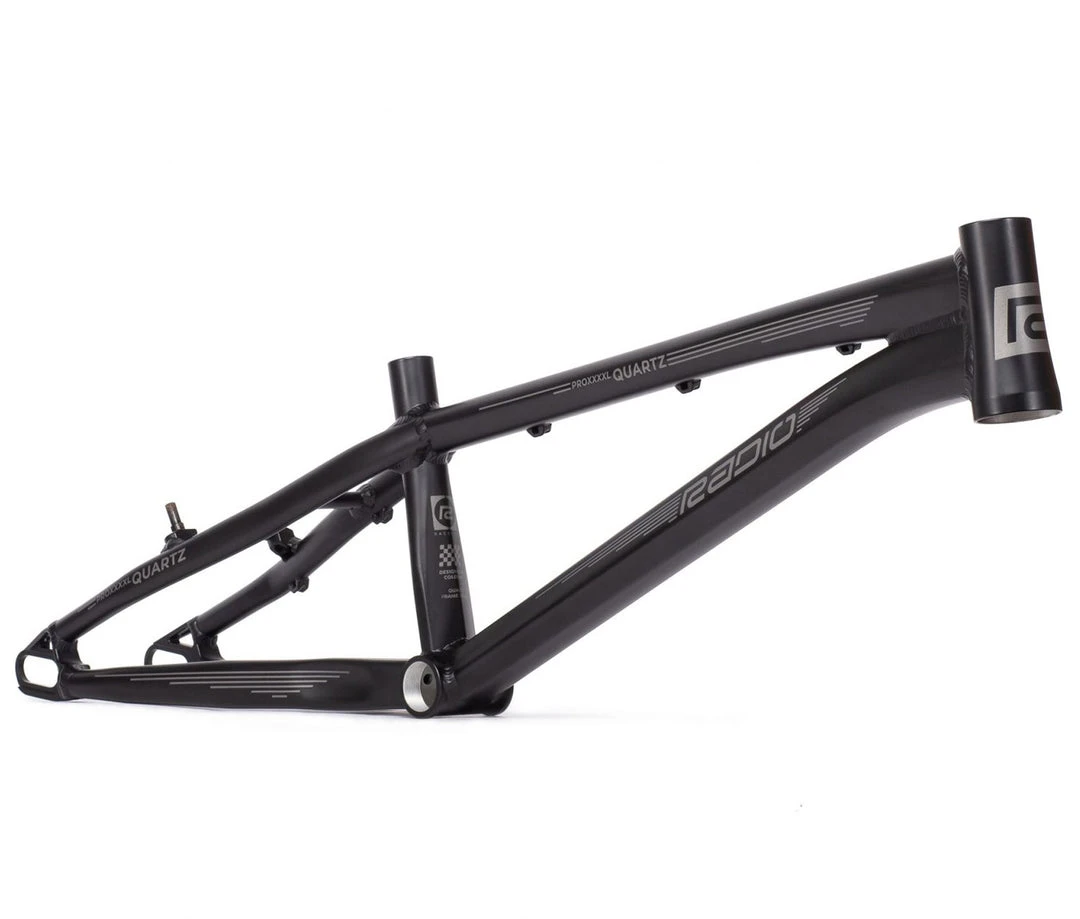

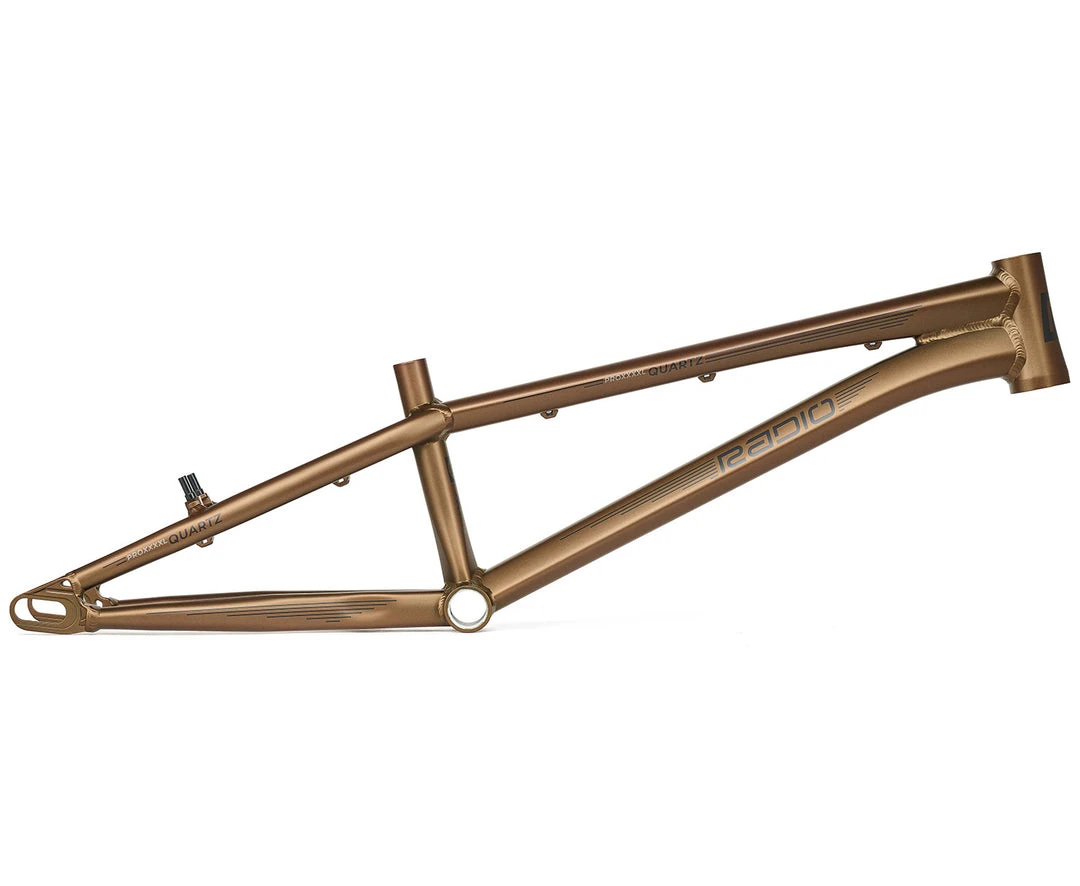

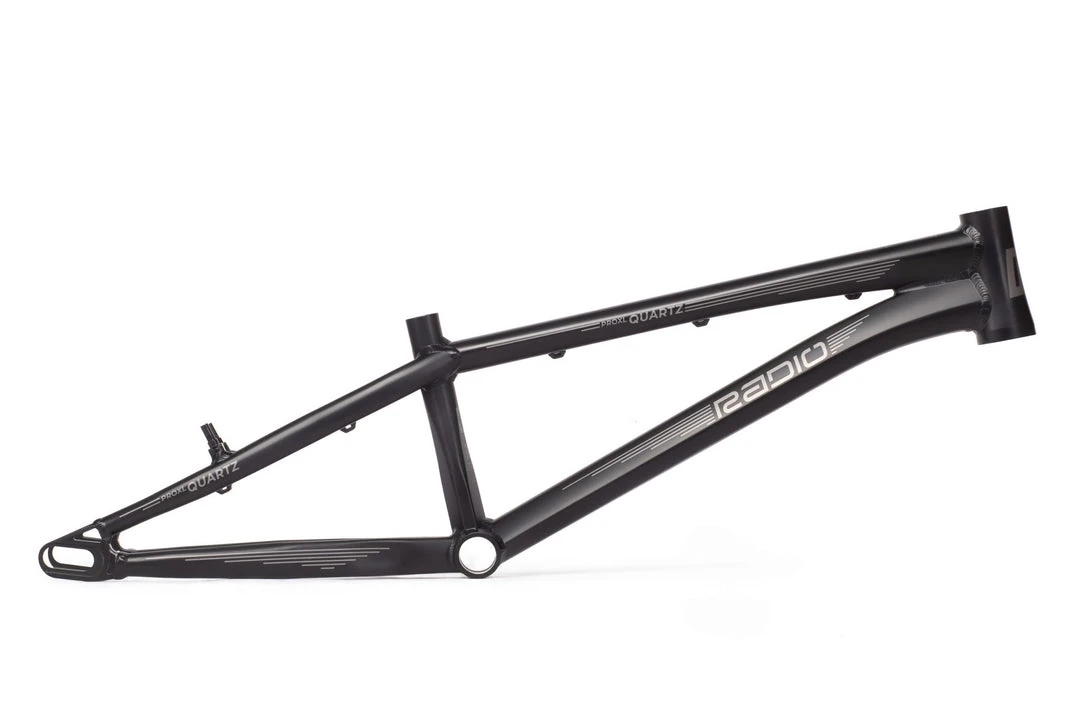

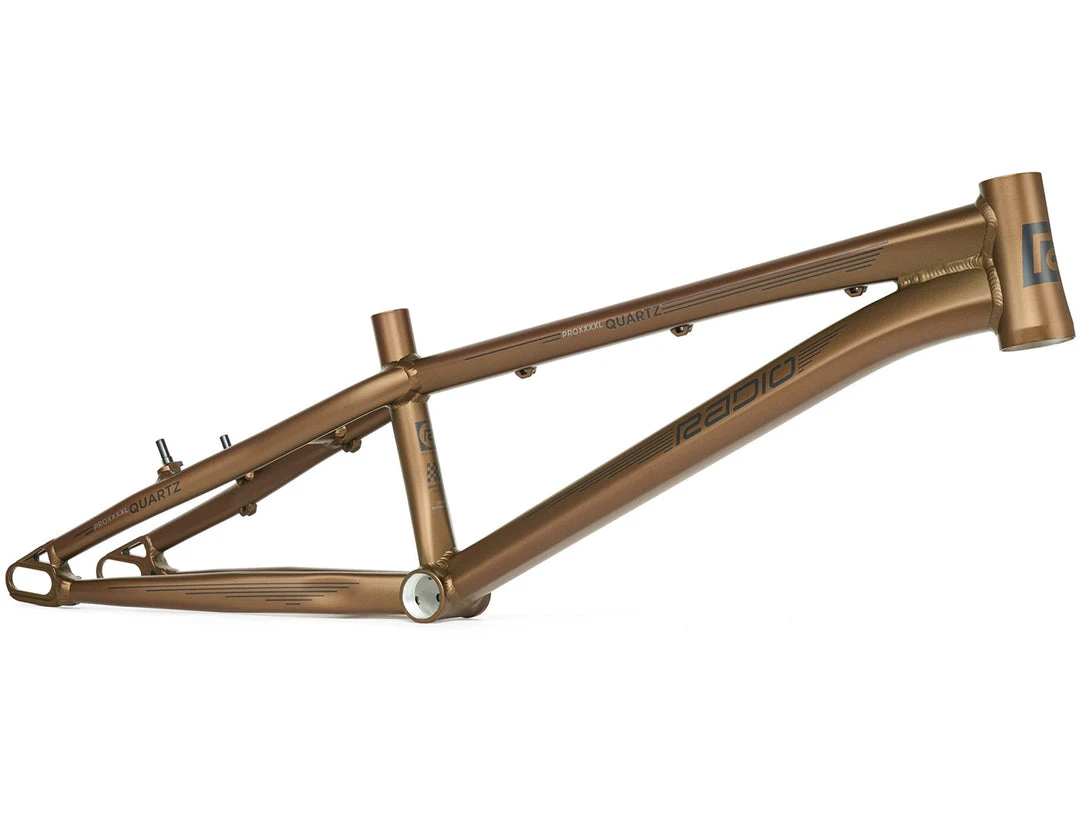

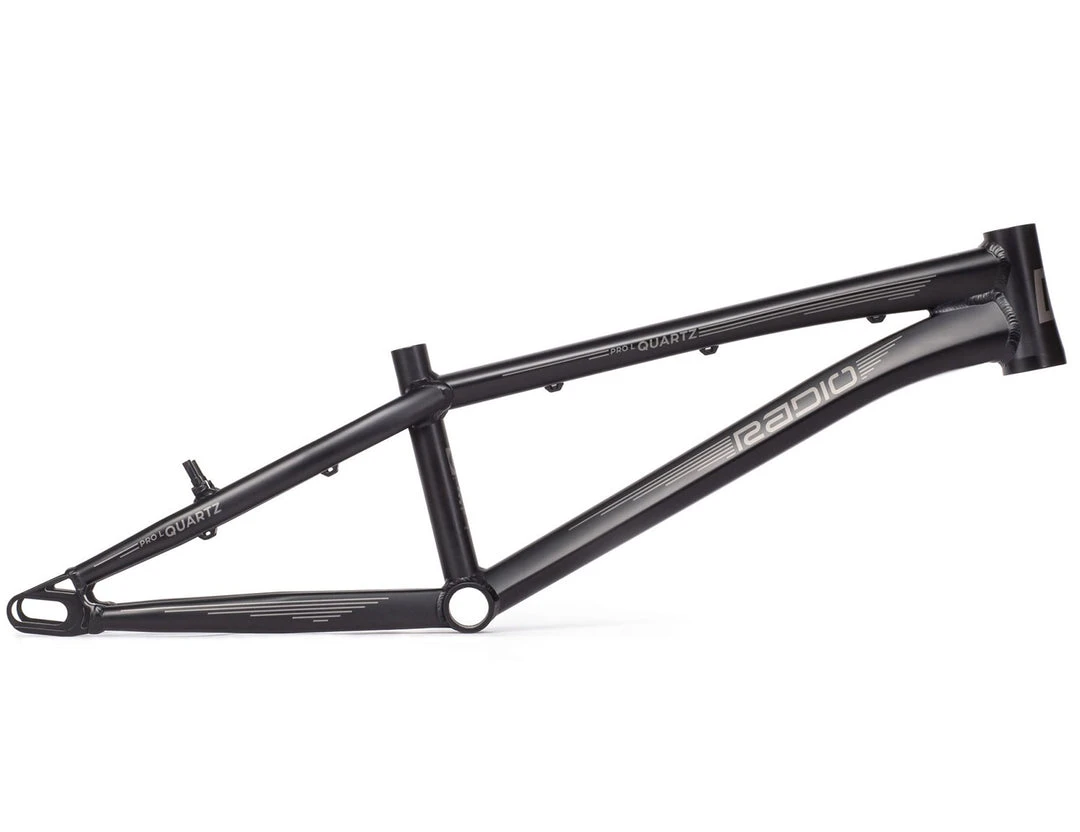

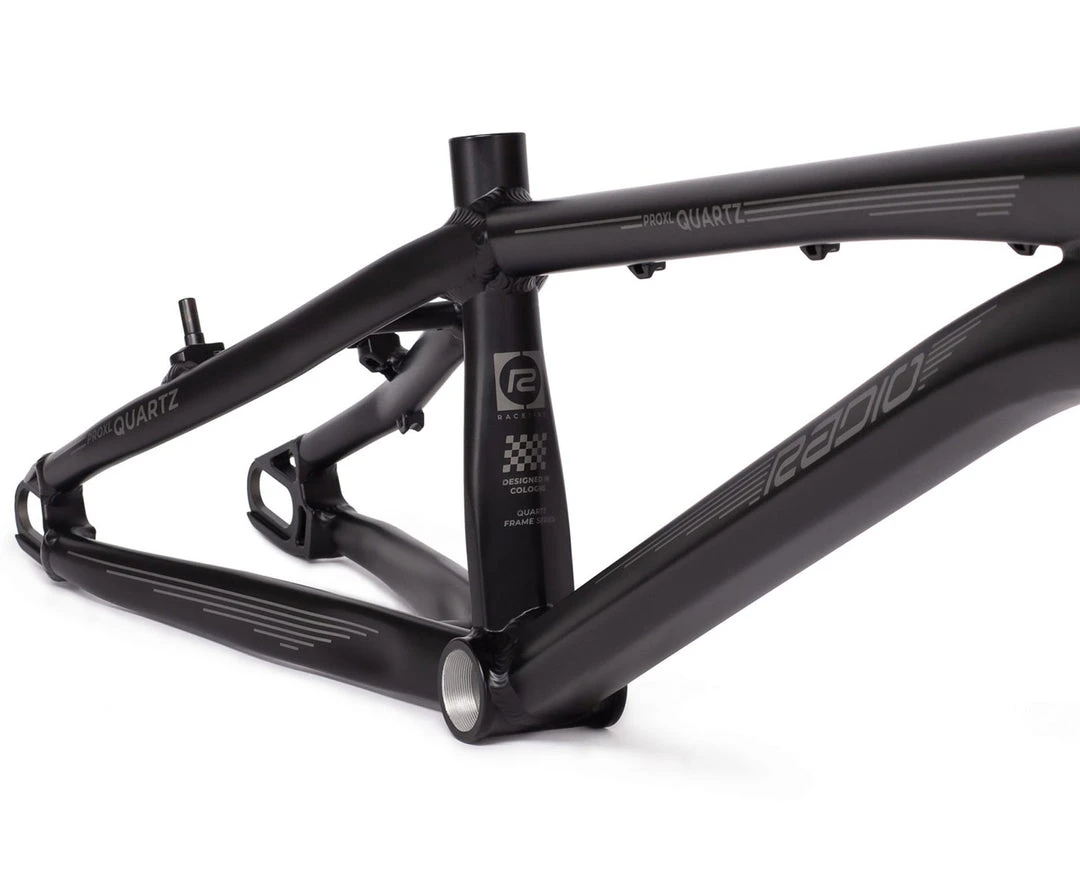

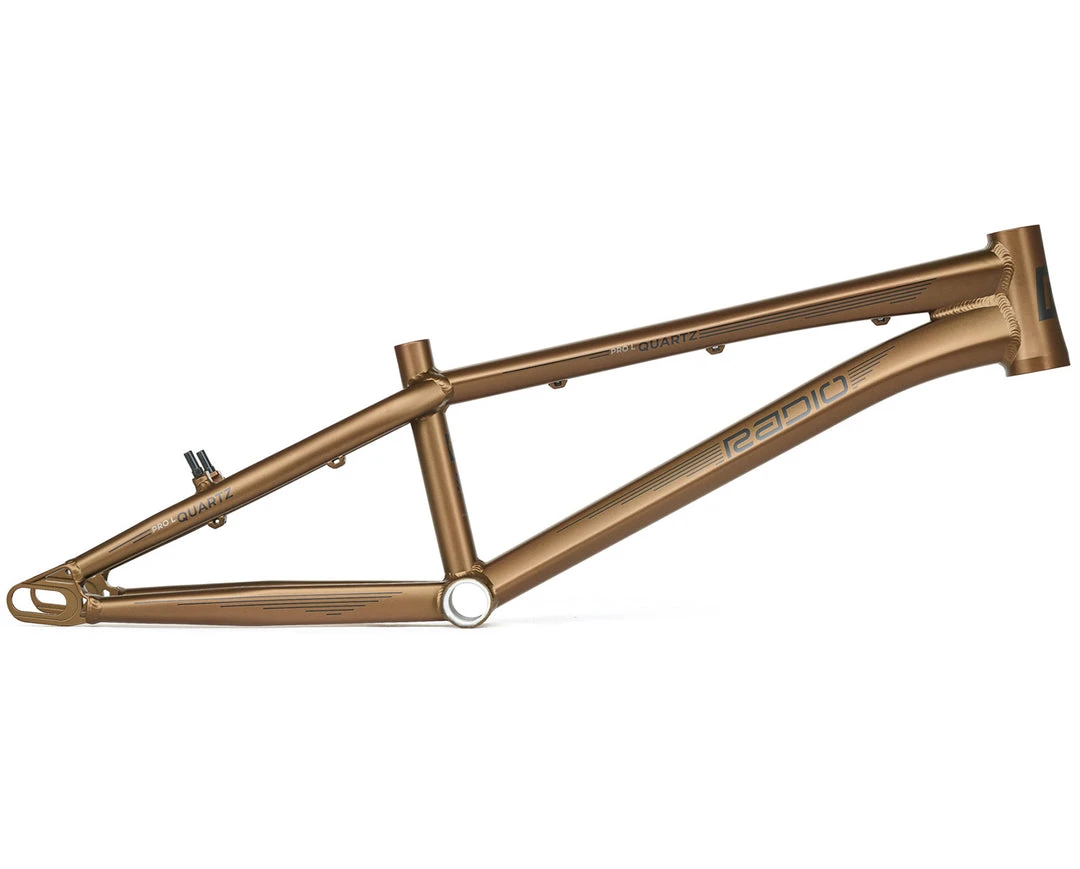

Radio BMX FRAMES Radio Raceline Quartz Frame

The Radio Quartz frame is a podium level BMX race frame. Using Radio’s Paradigm Hydroformed Alloy tubing, the Radio Quartz frame sheds a bunch of weight without sacrificing strength.

A forged dropout design allows the Radio Quartz frame to be fully disc brake compatible, with the use of a Radio disc brake mount.

The Radio Quartz race frame is one truly sleek and fast BMX race frame with all the tech features you can desire, in 6 sizes from Pro, all the way to Pro XXXXL.

FEATURES

• Material: Hydroformed Paradigm 6061-T6 alloy

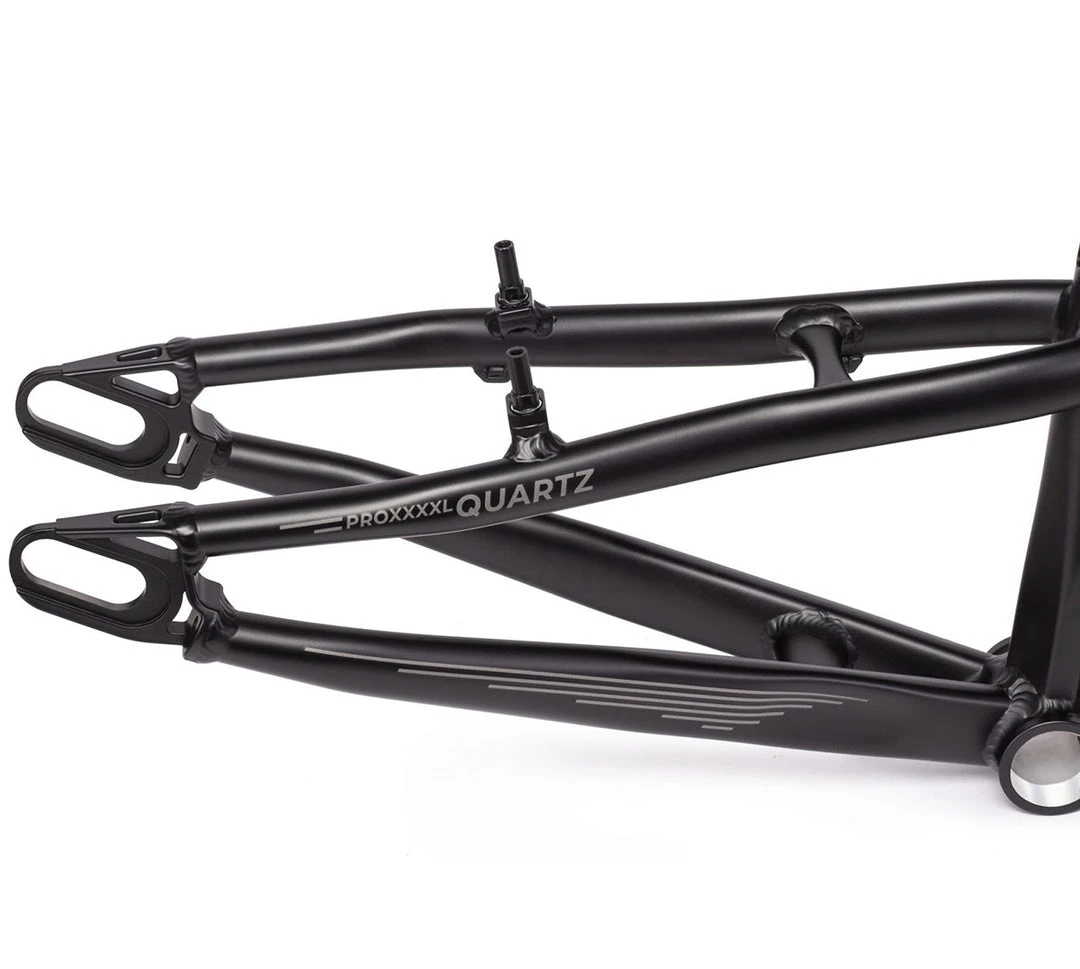

• Forged and CNC machined dropouts with Integrated chain tensioners
• V-brake mounts (Disc brake compatible)
• Water transfer (no scratch) decals

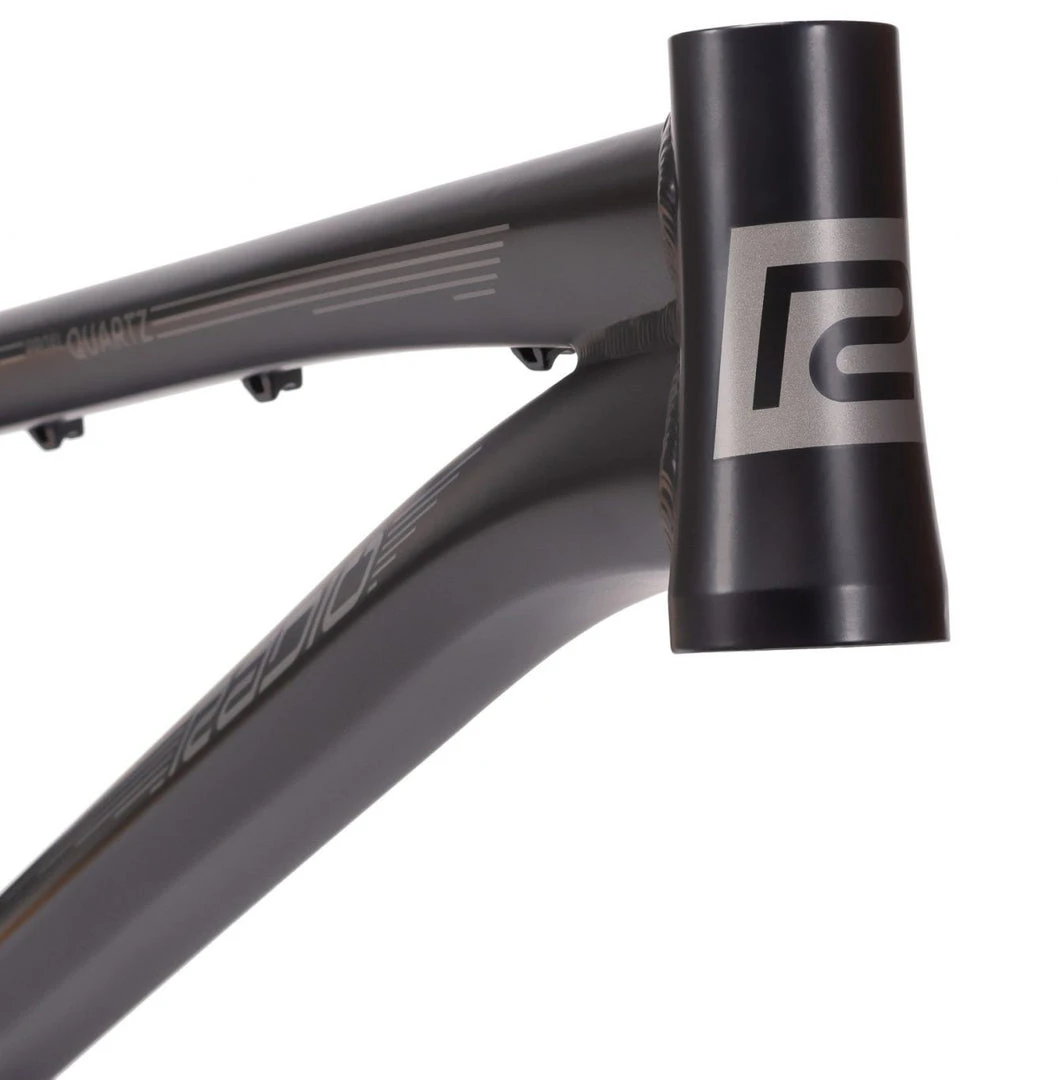

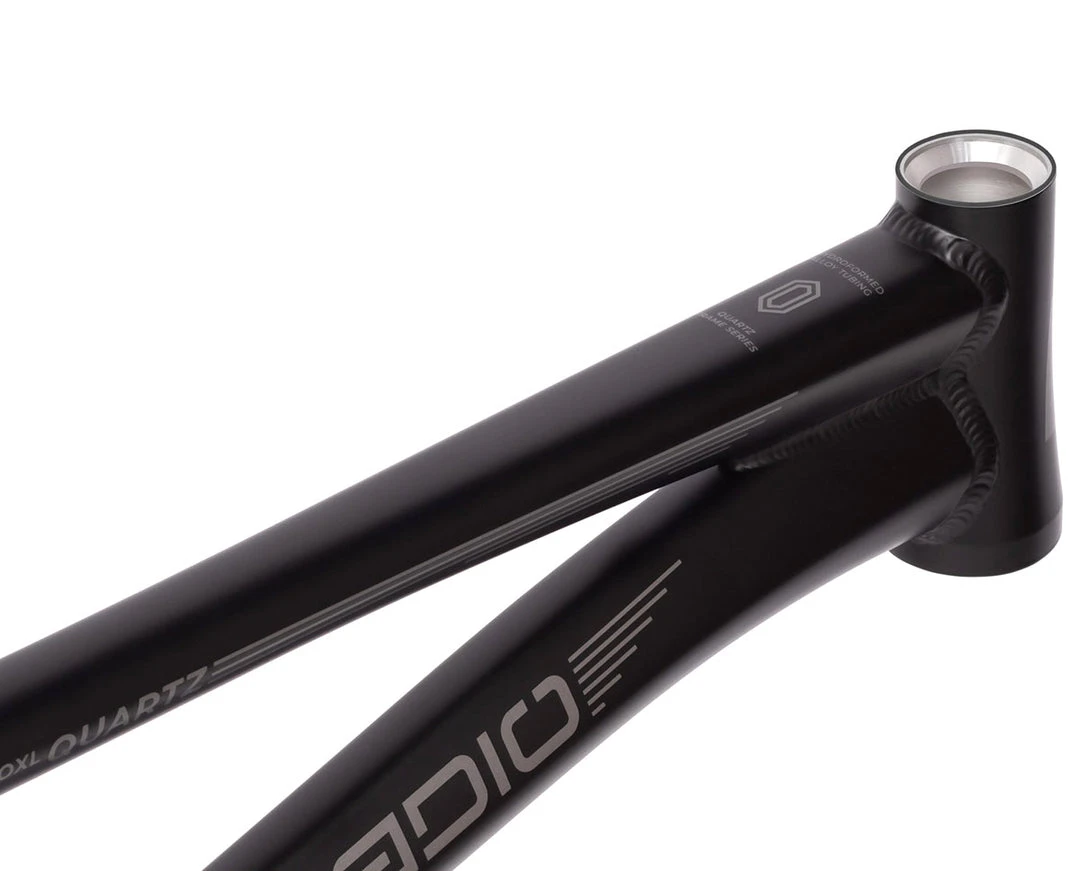

• Tapered 1-1/8″ – 1.5″ headtube
• 20mm enclosed dropout (including chain tensioners for 10, 15 or 20mm axles)
• Suits 20 x 1.75″ wheel size

GEOMETRY (All sizes)

• 74º Head tube angle
• 231mm seat tube length
• 503mm rider area
• 11.6″ BB height
• 27.2mm seat post size
• European Threaded BB
• Weight: 1.655 kg

TOP TUBE / CHAINSTAY LENGTH

• Pro: 20.5″ TT / 13.9″ CS (Minimum)
• Pro L: 20.9″ TT / 13.9″ CS (Minimum)
• Pro XL: 21.25″ TT / 14.5″ CS (Minimum)
• Pro XXL: 21.75″ TT / 14.8″ CS (Minimum)
• Pro XXXL: 22.25″ TT / 14.8″ CS (Minimum)
• Pro XXXXL: 22.5″ TT / 15.2″ CS (Minimum)
